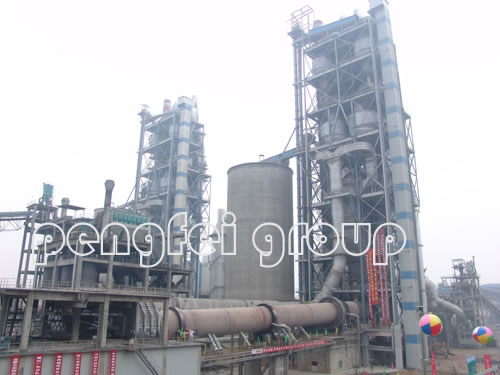

Φ5.0×74m Rotary Kiln
Technical Parameters ofφ5.0×74m Rotary Kiln:
1. Name of equipment: Y5074 rotary kiln
2. Application: 6000t/d dry process cement production line
3. Specification: Φ5.0×74m(inner diameter of cylinder×length)
4. Type: single driving, single hydraulic thrust roller
5. Amount of supports: 3
6. Inclination: 4%(sine)
7. Rotating speed g: main driving: 0.35 ~4r/min; auxiliary driving: 7.58r/h.
8. Sealing mode: kiln head: sheet steel sealing; kiln end: air cylinder sealing
9. Cooling of kiln head: air cooling
10. Main driving motor: ZSN4-450-092
Power: 710 kW
Voltage: 660V
Rotating speed: 1000r/min
Speed adjusting range: 88.3~1000r/min
Protection level: IP54
Insulation level: F
Cooling mode: IC37
Starting torque: 2.5 times
Manufacturer: Shanghai Nanyang Electrical Machinery Factory
11. Main speed reducer:
Model: JH800C-SW306-28
Center distance: 1760
Manufacturer: CN Gpower Gearbox Co., Ltd
12. Tachogenerator:
Amount: 1set
Model: ZYS-100A
Power: 8 W
Voltage: 100V
Speed measuring range: 0~1000r/min
13. Auxiliary driving motor:
Amount: 1set
Model: Y250M-4
Power: 55 kW
Voltage: 380V AC
Rotating speed: 1480r/min
Protection level: IP44
Insulation grade: F
14. Auxiliary driving speed reducer:
Amount: 1 set
Model: JH280C-SW301-45
Center distance: 620 mm
Manufacturer: CN Gpower Gearbox Co., Ltd
