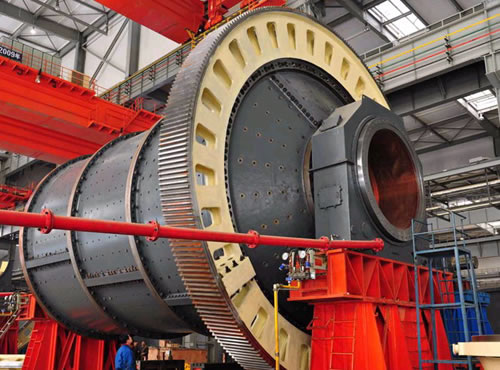

Autogenous Mill

Description of Autogenous Mill:
This autogenous mill is typically designed to grind ores and other particulate matter in various fields like building material field, chemical industry, metallurgy industry, refractory material sector, and so on. Besides, it can also be used to grind materials with little iron content.

As its name suggests, it fan finish impacting and grinding materials totally by itself. So it is quite easy to operate. Moreover, it is easy and convenient to maintain, and is highly efficient.


Parameters of Autogenous Mill:

Cylinder diameter (mm) Cylinder length (mm) Effective area of cylinder (m3) Rotating speed at work (r/min) Power of main motor (kw)
4000 1600-3600 19-42 16.2 240-540
4500 1800-4100 27-61 15.3 360-830
5000 2000-4500 38-83 14.5 530-1200
5500 2200-5000 51-112 13.8 740-1700
6100 2400-5500 69-152 13.1 1050-2400
6700 2700-6000 93-201 12.5 1500-3300
7300 2900-6600 120-264 12 2000-4500
8000 3200-7200 160-347 11.4 2800-6200
8600 3400-7700 197-429 11 3500-7900
9200 3700-8300 246-530 10.7 4500-10000
9800 3900-8800 296-640 10.3 5600-12500
10400 4200-9400 359-770 10 7000-15400
11000 4400-9900 422-909 9.8 8400-19000
11600 4600-10400 492-1064 9.5 10000-22000
12200 4900-11000 580-1246 9.2 12000-27000


Note: Parameters in the form is only for reference, and actual parameters should refer to the singed contract technology.
