Hammer Crusher
Description of Hammer Crusher:
Our PC series hammer crusher is mainly used to crush brittle mineral materials whose compressive strength is less than 100MPa, such as coal, salt, chalk, gypsum, alums, bricks, tiles, limestone, etc.

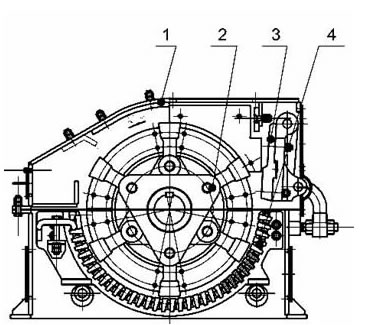

It is mainly comprised of crusher frame, rotor, grate bars, and hammer. Rotors are directly driven by the motor via elastic coupling, and materials will be crushed under the impacting action of hammer head to the crushing plate.
Technical Parameters of PC Series Hammer Crusher:
| Model | rotor working diameter / length(mm) | Rotating Speed of rotors (r/min) | Feeding Size (mm) | Max.feeding size (mm) | Discharging size (mm) | Handling Capacity (t/h) | Motor Power (kw) | Weight (t) | Overall Dimensions (mm) |
| PC-41 | Ф400/175 | 1000 | 145×270 | 50 | 3 | 0.5 | 5.5 | 0.5 | 812×1056×1315 |
| PC-44 | Ф400/400 | 1500 | 145×450 | 100 | 10 | 5~8 | 7.5 | 0.9 | 744×942×878 |
| PC-64 | Ф600/400 | 1000 | 295×450 | 100 | 15 | 10~12 | 18.5 | 1.03 | 1054×972×1117 |
| PC-66 | Ф600/600 | 1000 | 295×570 | 100 | 10 | 12~18 | 45 | 2.14 | 1315×840×1501 |
| PC-86 | Ф800/600 | 1000 | 350×570 | 200 | 10 | 20-25 | 55 | 2.45 | 1515×2586×1040 |
| PC-88 | Ф800/800 | 1000 | 350×850 | 200 | 15 | 35-45 | 55 | 3.05 | 1515×2831×1040 |
| PC-108 | Ф1000/800 | 1000 | 580×850 | 200 | 13 | 25-40 | 110 | 6.5 | 3206×2210×1515 |
| PC-1010 | Ф1000/1000 | 1000 | 580×1060 | 200 | 15 | 40-60 | 132 | 7.59 | 3514×2230×1516 |
| PC-1010 | Ф1000/1000 | 1000 | 580×1060 | 200 | 10 | 30-50 | 160 | 7.59 | 3514×2230×1518 |
| PC-1010 | Ф1000/1000 | 1000 | 580×1060 | 200 | 8 | 25-35 | 185 | 7.59 | 3514×2230×1518 |
| PC-1212 | Ф1250/1250 | 750 | 650×1330 | 200 | 20 | 90-110 | 185 | 19.1 | 4475×3162×2250 |
| PC-1414 | Ф1400/1400 | 750 | 1050×1540 | 250 | 20 | 120-170 | 280 | 17.2 | 2790×2800×2310 |
| PC-1618 | Ф1600/1800 | 590 | 1200×1740 | 350 | 20 | 220-280 | 500 | 32.4 |
Note: Parameters in the form are only for reference, and specific ones should refer to the particular contract.
