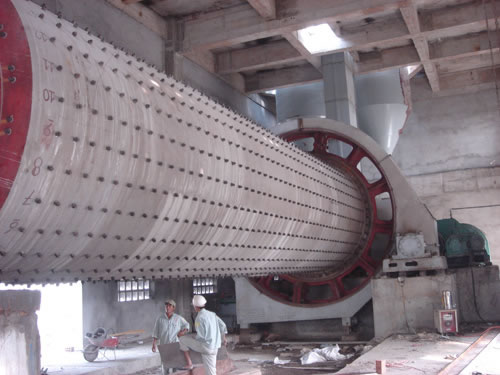

Slag Ball Mill
Description of Slag Ball Mill:
This slag ball mill is a key machine mainly used to process materials from crushing process, and it is widely used in various manufacture industries, like cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics. Besides, it can also used in dry and wet grinding for all kinds of ores and other grindable materials.
Technical Parameters of Slag Ball Mill:
| Number | Specification (m) | Productivity (t/h) |
Rotating speed of cylinder (r/min) |
Rotating mode | Power (kw) | Speed reducer | Weight (t) | |
| Model | Speed ratio | |||||||
| 1 | φ2.2×6.5 | 18 | 21.4 | Edge | 310 | ZD70 | 5 | 44 |
| 2 | φ2.4×8 | 26-28 | 20.14 | Edge | 570 | ZD80 | 6.3 | 90 |
| 3 | φ2.6×13 | 11-15 | 19.7 | Edge | 1000 | JDX800 | 6.3 | 137 |
| 4 | φ2.8×6.5 | 35 | 18.65 | Edge | 630 | ZD80 | 6.3 | 100 |
| 5 | φ2.8×10 | 45-48 | 18.65 | Center | 800 | MFY80 | 37.5 | 160 |
| 6 | φ3×6.5 | 37 | 18.58 | Edge | 800 | JD800 | 5.6 | 115 |
| 7 | φ3×9 | 40-50 | 18.58 | Edge | 1000 | JD800B | 5.6 | 132 |
| 8 | φ3×12 | 65-75 | 18 | Center | 1400 | JS110-B-F1 | 42.22 | 202 |
| 9 | φ3.2×13 | 72-75 | 17.86 | Edge | 1400 | JDX900 | 6.3 | 237 |
| 10 | φ3.4×7.5 | 70 | 16.9 | Edge | 1000 | ZDA-100 | 6.3 | 167 |
| 11 | φ3.5×10 | 90 | 16.8 | Center | 1250 | Js110-A | 44.1 | 154 |
| 12 | φ4.6×7.5+3.5 | 180 | 15 | Center | 2500 | --- | -- | 272 |
| 13 | φ4.6×10.5+3.5 | 210 | --- | Center | 3550 | JQS3550 | 15.1 | 360 |
Note: Parameters in the form is only for reference, and specific parameters should depend on the signed contract technology.
