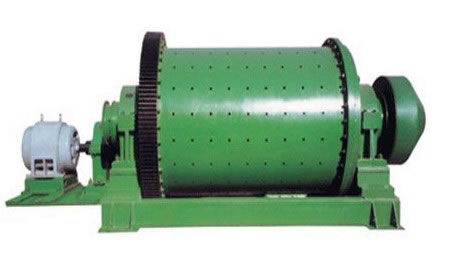

Overflow Mill

Description of Overflow Ball Mill:
This overflow ball mill is typically designed to grinding ores and other materials with different hardness, and it is widely used in different fields, such as ore dressing, building material field, chemical industry, and that. Because of its slurry discharging method, it is named as overflow ball mill.

When compared with grid ball mill, it can grind materials finer fully even though its grinding time is usually longer. So it can make finer particle products. Hence this overflow ball mill is mainly used for the secondary grinding.


Parameters of Overflow Ball Mill:

Cylinder diameter (mm) Cylinder length (mm) Effective area of cylinder (m3) Max. ball load (t) Working speed (r/min) Power of main motor (kw)
900 1200-2200 0.6-1.2 1-2 34.8-39.5 7-14
1200 1600-2900 1.6-2.8 3-5 29.8-33.9 20-40
1500 2000-3600 3.2-5.7 6-11 26.5-30.1 45-90
2100 2700-5000 9-16 17-30 22.3-25.3 140-280
2400 3100-5800 13-24 24-45 20.8-23.6 220-460
2700 3500-6500 19-35 35-65 19.6-22.2 340-690
3200 6200-10600 33-58 61-108 17.9-20.4 620-1300
3600 4700-8600 47-83 87-154 16.9-19.2 940-1900
4000 5200-8800 64-105 113-186 15.6-17.3 1300-2400
4300 5600-9500 80-132 141-233 15.0-16.7 1600-3100
4500 5900-9900 92-151 163-267 14.7-16.3 1900-3600
4800 6200-10600 111-184 196-325 14.2-15.8 2400-4500
5000 6500-11000 126-207 223-366 13.9-15.5 2800-5200
5200 6800-11400 143-233 253-412 13.6-15.2 3200-6000
5500 7200-11600 169-265 275-431 12.9-14.0 3600-6300
5800 7500-12200 196-311 319-506 12.6-13.6 4300-7600
6000 7800-12600 219-244 356-397 12.3-13.4 4900-8600
6200 8100-12700 243-371 373-569 12.1-13.2 5300-9100
6400 8300-13100 265-408 407-626 11.9-13.0 5900-10100
6700 8700-13700 305-468 468-718 11.7-12.7 6900-11900
7000 9100-13700 348-512 502-738 11.4-12.4 7800-12800
7300 9500-14200 396-578 571-833 11.2-12.1 9000-14700
7600 9900-14800 447-653 644-941 10.9-11.9 10400-17000
7900 10300-15000 503-717 678-967 10.7-11.7 11400-18200
8200 10700-15600 564-804 761-1084 10.5-11.4 13000-20800
8500 11100-16200 628-897 847-1210 10.3-11.2 148-23600


Note: Parameters in the form is just for reference, and specific parameters should refer to the signed contract.
