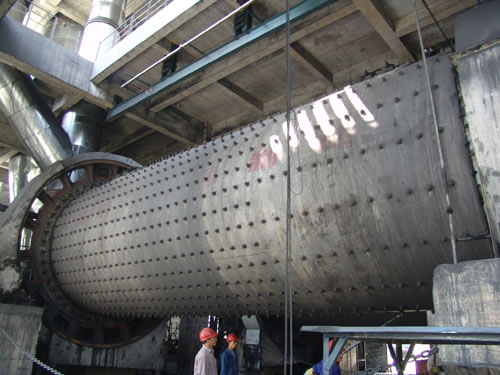

Air Swept Coal Mill
Description of Air Swept Coal Mill:
This air swept coal mill is specially used to dry and grind coal. And it is mainly consist of feeding device, main bearing, rotary part, transmission device, high voltage starting device, and lubrication system.
Raw materials enter into the mill by the feeding device, and the hot air gets into the mill through the air tube. When the mill cylinder begins to rotate, coal and hot air can exchange heat with each other. Meanwhile, the coal will be crushed and grinded in the air swept coal mill. While the coal is grinded, fine powder will be taken by the hot air out of the mill through the discharging device.
Featuring rational structure and high grinding efficiency, this air swept coal mill is an ideal choice for coal pulverization.
Parameters of Air Swept Coal Mill:
| Specification (diameter×length ) |
Rotating speed (r/min) |
Particle size of feeding material (mm) |
Production capacity (t/h) |
Loading weight (t) | Main motor | Main speed reducer | Weight (t) | |||
| Model | Power (kw) | Rotating speed (r.p.m) | Model | Speed ratio | ||||||
| φ2.2×4.4m | 22.4 | ≤25 | 8~9t/h | 18t | YRKK4501-6 | 250 | 986 | ZD60-11 | 6.3 | 36.7 |
| φ2.2×5.8m | 22.4 | ≤25 | 5.5~7 | 23.5~25 | Y4005-8 | 280 | 750 | ZD70-10 | 5.6 | 45 |
| φ2.4×4.75m | 21.2 | ≤25 | 14 | 22~24 | YR4501-8 | 315 | 740 | ZD60-8 | 4.5 | 49 |
| φ2.4×4+2m | 20.2 | ≤25 | 10~11 | 19 | YRKK450-8 | 250 | 740 | ZDY355 | 4.5 | 60 |
| φ2.4×4.5+2m | 20.2 | ≤25 | 10~12 | 20.8 | YRKK500-8 | 280 | 740 | JDX45 | 4.5 | 68 |
| φ2.6×(5.25+2.25)m | 19.7 | ≤25 | 9~10 | 28 | YRKK500-8 | 400 | 740 | ZDY450 | 4.5 | 87.4 |
| φ2.8×(5+3)m | 18.7 | ≤25 | 13~13.5 | 32 | Y5001-8 | 500 | 740 | JDX560 | 4.5 | 102 |
| φ2.9×4.7m | 19.1 | ≤25 | 14~19 | 34.4 | YR560-8 | 500 | 743 | MBY560 | 5.6 | 79 |
| φ2.5×3.9m | 21 | ≤25 | 14 | 21 | JR138-8 | 280 | 740 | ZD70-9 | 5 | 49.5 |
| φ3×(6.5+2.5)m | 18.3 | ≤25 | 17~19 | 43 | YRKK5603-8 | 630 | 740 | MBY560 | 5 | 120 |
| φ3.2×4.8m | 16.7 | ≤25 | 20 | 48 | YR630-8 | 630 | 740 | MBY560 | 5 | 118 |
| φ3.2×(6.5+2)m | 16.9 | ≤25 | 20 | 50 | YRKK560-8 | 710 | 740 | JDX630 | 5 | 137 |
| φ3.5×8m | 17.2 | ≤25 | 55~60 | 80 | YRKK710-8 | 1000 | 740 | MBY800 | 6.3 | 182 |
| φ3.8×(7.75+3.5)m | 16.7 | ≤25 | 85 | 85 | YRKK710-8 | 1400 | 740 | JDX90-WX-2A | 5.6 | 215 |
Note: Parameters in the form is just for reference, and specific parameters should be in accordance with the signed contract.
