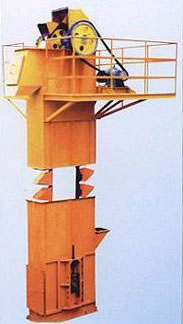

Bucket Elevator
Technical Parameters of NE Series Bucket Elevator:
| Model | Lifting capacity | Bucket | Weight of operation parts | Max. size of materials | ||||||
| (m3/h) |
Volume (L) |
Bucket gap (mm) |
Bucket speed (m/min) |
Percentage (%) | ||||||
| 10 | 25 | 50 | 75 | 100 | ||||||
| NE15 | 15 | 2.5 | 203.2 | 29.8 | 28 | 65 | 50 | 40 | 30 | 25 |
| NE30 | 32 | 7.8 | 304.8 | 30.1 | 35 | 90 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 14.7 | 304.8 | 30.1 | 64 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 35 | 400 | 31 | 89 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 170 | 52.5 | 400 | 31 | 112 | 130 | 105 | 80 | 65 | 55 |
| NE200 | 210 | 84.6 | 500 | 30 | 134 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 127.5 | 500 | 30 | 188 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 380 | 182.5 | 600 | 30 | 205 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 260.9 | 700 | 30 | 223 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 300.2 | 700 | 30 | 274 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 501.8 | 800 | 30 | 313 | 275 | 220 | 165 | 135 | 110 |
Technical Parameters of TH/TGH Series Bucket Elevator
| Model | Bucket shape |
Conveying capacity (m3/h) |
Bucket | Chain | Sprocket pitch diameter (mm) |
Operation speed of bucket (m/s) |
Max. size of materials (mm) |
|||
| Width (mm) |
Volume (L) |
Distance (mm) |
Pitch (mm) |
Breaking load (KN) |
||||||
| TH315 | zh | 36.6 | 315 | 3.75 | 500 | 50 | ≥320 | φ630 | 1.4 | 35 |
| sh | 58.6 | 6 | ||||||||
| TGH315 | zh | 46 | 3.75 | 400 | ||||||
| sh | 80 | 6 | ||||||||
| TH400 | zh | 57.7 | 400 | 5.9 | 500 | 40 | ||||
| sh | 92.8 | 9.5 | ||||||||
| TGH400 | zh | 80 | 5.9 | 400 | ||||||
| sh | 125 | 9.5 | ||||||||
| TH500 | zh | 73 | 500 | 9.3 | 688 | 86 | ≥480 | φ800 | 1.5 | 50 |
| sh | 118 | 15 | ||||||||
| TGH500 | zh | 100 | 9.3 | 516 | ||||||
| sh | 157 | 15 | ||||||||
| TH630 | zh | 114 | 630 | 14.6 | 688 | 60 | ||||
| sh | 185 | 23.6 | ||||||||
| TGH630 | zh | 152 | 14.6 | 516 | ||||||
| sh | 246 | 23.6 | ||||||||
| TH800 | zh | 146 | 800 | 23.3 | 920 | 92 | ≥570 | φ1000 | 1.4 | 75 |
| sh | 235 | 37.5 | ||||||||
| sh | 365 | 58 | ||||||||
Technical Parameters of HL Series Bucket Elevator
| Model | Output (t/h) | Rotating speed (r/min) | Motor power (kw) | Weight (kg) | |
| 10m | m | ||||
| HL160 | 15-8.0 | 1.25 | 3.0-11 | 2480 | 140 |
| HL250 | 21-11 | 1.25 | 3.0-15 | 3390 | 180 |
| HL300 | 28-16 | 1.25 | 5.5-18.5 | 3930 | 200 |
| HL400 | 47-30 | 1.25 | 7.5-22 | 4990 | 260 |
| HL315 | 59-35 | 1.4 | 4.0-11 | 3960 | 180 |
| HL400 | 94-58 | 1.4 | 7.5-18.5 | 4980 | 205 |
| HL500 | 118-73 | 1.4 | 11-22 | 5820 | 255 |
| HL630 | 145-90 | 1.4 | 15-30 | 6980 | 310 |
