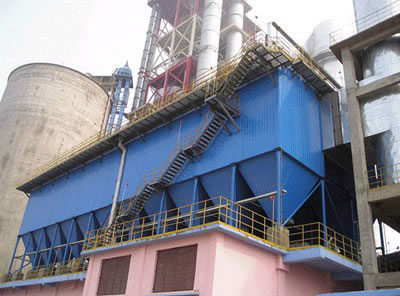

BFRS Kiln Inlet Bag Filter

Technical Parameters of BFRS Kiln Inlet Bag Filter:

Model BFRS700
-2×3
BFRS700
-7
BFRS1200
-2×6
BFRS1200
-2×7
BFRS1200
-2×8
Technical performance Flue gas treating volume ≤88500 102100 310000 ≤370000 ≤423000
Gas temperature <250 <250 ≤250 ≤250 ≤250
Feeding dust concentration ≤80 80 ≤80 ≤80 ≤80
Discharging dust concentration ≤100 100 ≤100 ≤100 ≤100
Total filtering area (m2) 4116 4872 14033 16263 18586
Filtration air speed (m/min) 0.36 0.34 0.37 0.38 0.38
Net filtration air speed (m/min) 0.5 0.46 0.45-0.49 0.46-0.49 0.45-0.48
Resistance of environmental protection equipment(Pa) 1470 1766 1470 1470 1470
Pressure of environmental protection equipment(Pa) 3920 3920 3920 3920 3920
Pressure of air inlet (Pa) >-1500 -290~-490
Structural performance Chamber amount×bag amount in each chamber 6×140=840 7×140=980 12×138=1656 14×138=1932 16×138=2208
Specification of filtering bag φ200×7794 φ200×7794 φ302×9296(135 bags)
φ302×7162(3 bags)
φ302×9296(135 bags)
φ302×7162(3 bags)
φ302×9296(135 bags)
φ302×7162(3 bags)
Material of filtering bags CW300-FQ803 CW300-FQ803 CW300-FQ803 ETWF500
S=0.45
ETWF500
S=0.45
Blowback fan model×static pressure×air volume Y5-47NO8
2292 Pa×
16800
230IE×14〞
×15254
Y5-48
NO12.5
2980 Pa
×35240
Y5-47
NO12D
3577 Pa×
46000
Y5-47
NO12D
3577 Pa×
46000
Rotating speed of motor×shaft power Y200L-4
30kw
1488rpm
×23kw
Y280S-4
1450rpm
×75kw
Y280S-4
1450rpm
×75kw
Y280S-4
1450rpm
×75kw
Specification of spiral gate   300×300   14 blowback fans
φ914QGB
-FQ125×355
16 blowback fans
φ914QGB
-FQ125×355
Lift valve specifications×amount
Air cylinder model
Three φ510
10A-5
WFA1008
145A5
Seven φ510
QGBⅡF-100
×280-MF1
Twelve φ914
QGB-FQ125
×355-L2
Fourteen φ914
QGB-FQ125
×355
Sixteen φ914
(36°)
QGB-FQ
125×350
Purge valve specification×amount
Air cylinder model
One φ510
10A-5VFA
100B148A5
One φ460
QGBⅡF-100
×280-MF1
One φ914
QGB-FQ125
×355-L2
One φ914
QGB-FQ125
×35
One φ914
QGB-FQ125
×35
Butterfly valve×amount
Cylinder
Six 600
×90010A-
5VFA100B
148A5

Overall dimensions L×W×H(mm) 13491×9144
×17555
26423×3765
×17450
18288×21232
×18617
21336×21032
×16375
24384×21032
×16375
Equipment weight (kg) 103017 108999 373890 426400
axial flow fan         35-11NO6.3
1450rpmYSF
-80240.75kw
