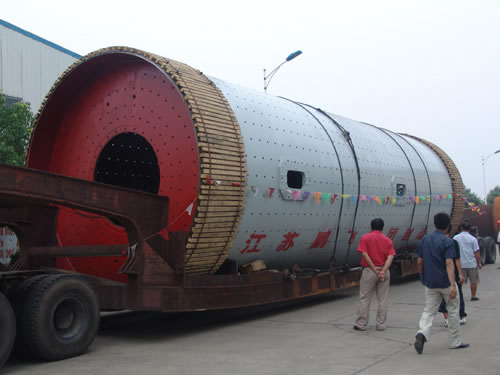

Tube Grinding Mill

Description of Tube Grinding Mill:
Our tube grinding mill is typically designed for grinding different kinds of ores and many other grindable materials, and it can be widely used in building materials, metallurgy, chemical industry, electricity industry, and many other industrial or mining fields.
It can be used for open circuit grinding, and when used in conjunction with powder classifier, it can also be used in circulatory closed-circuit grinding.
Our tube grinding mill can be used in dry production line as well as wet production line, and the grinding process can be accompanied by dry process. And it has advantages of strong material adaptability, strong continuous production capacity, big crushing rate, and it is easy to adjust the grinding fineness.



Technical Parameters of Cement Tube Mill:

Specification (diameter×length) Rotating speed
(r/min)
Feeding size (mm) Productivity (t/h) Loading capacity of mill (t) Main motor Main speed reducer Weight (t)
Model Power (kw) Rotating speed (r.p.m) Model Speed ratio
φ2.2×11 20.91 ≤25 15~17 50 TR1512-8 570 740 Zd80 5.6 92
φ2.4×8 20.91 ≤25 14~18 39.5~42 TRQ1512-8 570 740 Zd80-9 5 76.4
φ2.4×9 20.91 ≤25 23~25 50 TR1512-8 570 740 Zd80-9 5 91
φ2.4×10 20.91 ≤25 16~22 50 TR1512-8 570 740 Zd80-9 5 111
φ2.4×11 21 ≤25 19~24
22~28
6265 YR710-8/1180 710 740 JDX630 5.6 125
φ2.4×12 21 ≤25 18~20
21~23
6365 YR800-8/1180 800 740 MBY710 6.3 127
φ2.4×13 21 ≤25 21~22
24~26
6668 YR800-8/1180 800 740 MBY710 6.3 131
φ2.6×10 20.6 ≤25 21~24 64 YR800-8/1180 800 740 JDX710 6.3 140
φ2.6×13 20.6 ≤25 28~31 81 YR1000-8/1180 1000 740 JDX800 6.3 158
φ3.0×9 19.13 ≤25 40~45 85 YR1000-8/1180 1000 740 MBY800 7.1 148
φ3×11 18.92 ≤25 44~47 95 YR1250-8/1430 1250 740 JDX900 7.1 177
φ3×12 18.92 ≤25 48~52 103 YR1250-8/1430 1250 740 JDX900 7.1 182
φ3×13 18.92 ≤25 39~45 116max YR1400-8/1430 1400 740 JDX900 7.1 200.7
φ3.2×11 18.3 ≤25 45~48 112max YR1600-8/1430 1400 740 JDX900 7.15 213.6
φ3.2×13 18.7 ≤25 50~55 133max YR1600-8/1430 1600 740 JDX1000 7.15 237
φ3.4×11 18 ≤25 45~55 120max YR1600-8/1430 1600 740 JDX1000   230
φ3.5×13 17 ≤25 60~65 156max YR2000-8/1730 2000 740 TS130-A-F1   257.6
φ3.8×13
(main bearing type)
17 ≤25 65~70 190 YR2500-8/1730 2500 740 JS130-C-F1   316
φ3.8×13 17 ≤25 65~70 185 YR2500-8/1730 2500 740 DMG22/2500   313
φ4×13 16.3 ≤25 78~80 191 YRKK900-80 2800 745 JS140-A   348
φ4.2×11
(main bearing type)
15.8 ≤25 100~110 182~190 YR2800-8/17830 2800 740 JS140-A-F1D   350
φ4.2×13
(main bearing type)
15.2 ≤25 120~130 245 YRKK1000-8 3350 740 MFY355-A   390
φ4.2×13 15.2 ≤25 110~120 230 YRKK1000-8 3350 740 MFY355-A   380
φ4.6×14 15 ≤25 100~115 285 YR1000-8 4200 740 J3160-C   485


Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.

Technical Parameters of Raw Mill:

Specification (diameter×length ) Rotating speed
(r/min)
Feeding size (mm) Productivity (t/h) Loading capacity of mill (t) Main motor Main speed reducer Weight (t)
Model Power (kw) Rotating speed (r.p.m) Model Speed ratio
φ3×(8.5+5) 18.9 ≤25 55~53 76~80 YR1000-8/1180 1000 740 JDX800 6.3 160
φ3.2×(7+1.8)
(Cantilever drying)
18.25 ≤25 50~53 59 YR630-8 1000 740 JDX800 6.3 153
φ3.5×10
(Cantilever drying)
17.3 ≤25 75~80 87 YR1250-8/430 1250 740 JS110-A-F1   214
φ3.6×(7.5+1.5) 17.3 ≤25 90~95 98 YRkk710-8 1400 740 JDX900 7.1 220
φ3.8×1.2 16.6 ≤25 133 100~110 YR800-8 2000 740 JS130-A   295
φ4.6×(9.5+3.5) 15 ≤25 185 175~180 YRkk1000-8 3550 740 MFY355A   415


Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.

Technical Parameters of Wet Raw Mill:

Specification (diameter×length ) Rotating speed
(r/min)
Feeding size (mm) Productivity (t/h) Loading capacity of mill
(t)
Main motor Main speed reducer Weight (t)
Model Power (kw) Rotating speed (r.p.m) Model Speed ratio
φ2.2×7 21.4 ≤3 20~25 31 YR148-8 380 740 ZD70-9 5 49
φ2.2×13 21.6 ≤25 33~37 58~60 YR630-8/1180 630 740 MBY630 5.6 53.4
φ2.4×13 21 ≤25 45~50 65~70 YR800-8/1180 800 740 JDX710 5.6 131
φ2.6×13 20 ≤25 45~46 80t (max) YR1000-8/1180 1000 740 TDX800 6.3 153
φ6.2×6.4 18.5 ≤25 32~41 86~90.5 TDMK1000-36 1000 740     134


Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.

Technical Parameters of Drying Raw Mill:

Specification (diameter×length ) Rotating speed
(r/min)
Feeding size (mm) Productivity (t/h) Loading capacity of mill
(t)
Main motor Main speed reducer Weight (t)
Model Power (kw) Rotating speed (r.p.m) Model Speed ratio
φ2.4×8 20.91 ≤25 25~28 39~42 JRQ1512-8 570 740 ZD80-9 5 76.4
φ2.4×10 20 ≤25 27~30
38~40
50 YR710-8/1180 710 740 JDX630 5.6 111
φ2.4×11 21 ≤25 41~42
46~48
62~65 YR800-8/1180 800 740 MBY710 6.3 125
φ2.4×12 21 ≤25 40~42
45~48
63~65 YR800-8/1180 800 740 MBY710 6.3 127
φ2.4×13 21.5 ≤25 48~51 68~72 YR800-8/1180 800 740 MBY710 6.3 131
φ2.6×8 20 ≤25 30~35 54 YR630-8/1180 630 740 JDX630 5.6 135
φ2.6×10 20.91 ≤25 45~46 80 YR1000-8/1180 1000 740 JDX710 6.3 136
φ3×9 19.13 ≤25 50~55 76~80 YR1000-8/1180 1000 740 JDX800 6.3 145
φ3.2×7 18.25 ≤25 50~52 58 YR1000-8/1180 1000 740 MBY800 6.3 140
φ3.2×9 18.3 ≤25 60~70 90 YR1250-8/1430 1250 740 JDX900 7.1 175
φ4.6×10+3.5 15 ≤25 195 190   3550 740 JS150-B-F   476


Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.
