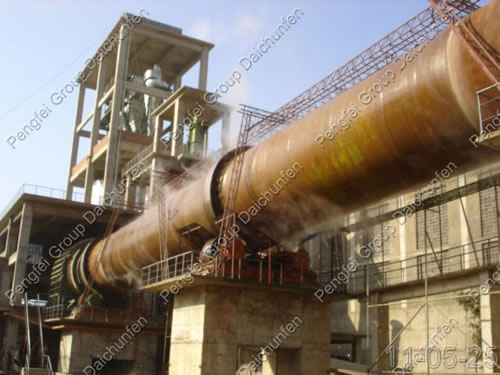

Φ6.2×87m Rotary Kiln
Technical Performance of Ф6.2×87m Rotary Kiln:
Specification: Ф6.2×87m
Output: 12000t/d dry process cement production line
Inclination: 3.5%
Amount of supports: 3
Rotating speed: main driving: 0.45~4.5r/min; auxiliary driving: 8.5r/h
Sealing mode: sheet steel for sealing kiln head and end
Cooling of kiln head: air cooling
Cooling of Ⅰ, Ⅱ thrust roller belts: air cooling
Driving mode: bilateral driving; main driving motor: 1050×2 KW.
Main Components ofФ6.2×87m Rotary Kiln:
1. Cooling tube for kiln head
2. Air cooler for Ⅰand Ⅱ thrust roller belt
3. 3 supporting devices
4. Cast alloy steel supporting rollers are designed with solid construction, and some parameters of them are in the following.
| External diameter | Width | Amount | Weight (kg) | Total weight (kg) |
| Ф2400 | 1150 | 2 | 32800 | 65600 |
| Ф2700 | 1300 | 2 | 45600 | 91200 |
| Ф2400 | 1150 | 2 | 32800 | 65600 |
5. Cone thrust rollers are made of cast alloy steel, and they have undergone normalizing treatment. The weight of double thrust roller is 5250kg.
