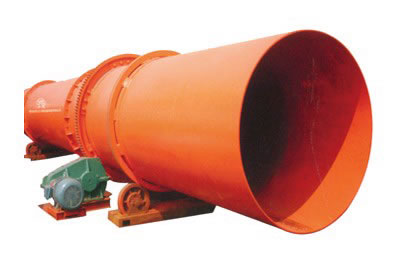

Rotary Cooler
Technical Parameters of LQ Series Rotary Cooler:
| Specification | Output | Rotating speed of cylinder | Cylinder slope | Main motor | Main speed reducer | Weight | |
| Model | Power | ||||||
| 1.2×10 | 3.0-5.0 | 4.0 | 2.5° | Y132M-4 | 7.5 | ZL40 | 10.0 |
| 1.4×12 | 4.0-6.0 | 3.3 | 2.5° | Y160L-6 | 11.0 | ZL60-40 | 15.8 |
| 1.5×14 | 5.0-10 | 3.3 | 2.5° | Y180L-6 | 15.0 | ZL70 | 19.5 |
| 1.6×16 | 5.5-11 | 3.5 | 2.5° | Y300L-4 | 18.5 | ZSY200-22.4 | 21.5 |
| 1.8×14 | 6.0-12 | 3.1 | 2.5° | Y200L1-6 | 18.5 | ZSY200-40 | 24.5 |
| 1.8×18 | 6.5-13 | 3.1 | 2.5° | Y225M-6 | 22.0 | ZL75-25-Ⅱ | 28.8 |
| 2.0×16 | 7.0-14 | 3.16 | 2.5° | Y255M-6 | 22.0 | ZL85-25-Ⅱ | 36.5 |
| 2.0×20 | 7.5-15 | 3.16 | 2.5° | Y280S-6 | 30.0 | ZL85-25-Ⅱ | 42.0 |
| 2.2×18 | 7.5-15 | 3.0 | 2.5° | Y280S-6 | 45.0 | ZSY250-35.5 | 45.8 |
| 2.2×22 | 8.0-16 | 3.0 | 3.5% | Y280S-6 | 45.0 | ZSY250-35.5 | 48.0 |
| 2.4×18 | 9.0-18 | 4.9 | 2.5° | Y225M-4 | 45.0 | ZSY250-31.5 | 56.5 |
| 2.4×22 | 10-20 | 3.6 | 2.5° | Y280M-6 | 55.0 | ZSY315-31.5 | 63.0 |
| 2.4×26 | 11-22 | 3.6 | 2.5° | Y315S-6 | 75.0 | ZSY315-31.5 | 69.0 |
| 2.6×24 | 12-24 | 3.6 | 2.5° | Y315S-6 | 75.0 | ZSY315-31.5 | 72.5 |
| 2.6×26 | 14-28 | 3.1 | 2.5° | Y315M-6 | 90.0 | ZSY315-31.5 | 81.0 |
| 2.8×24 | 15-30 | 3.1 | 2.5° | Y315S-6 | 75.0 | ZSY315-31.5 | 90.6 |
| 2.8×28 | 16-32 | 3.1 | 2.5° | Y315M-6 | 90.0 | ZSY315-31.5 | 96.5 |
| 3.0×24 | 20-40 | 3.05 | 2.5° | Y315M-6 | 90.0 | ZSY315-31.5 | 92.6 |
| 3.0×28 | 22-45 | 5.9 | 3.5% | Y315M-6 | 90.0 | ZSY315-31.5 | 108.0 |
| 3.0×30 | 25-50 | 3.85 | 3.5% | Y315S-4 | 110 | ZSY355-35.5 | 112.0 |
| 3.2×26 | 25-50 | 3.85 | 3.5% | Y315S-4 | 110 | ZSY355-35.5 | 125.0 |
| 3.2×28 | 28-55 | 3.47 | 2.5° | Y315L2-6 | 132 | ZSY355-35.5 | 132.0 |
| 3.4×28 | 30-60 | 3.47 | 2.5° | Y355M1-6 | 160 | ZSY400-35.5 | 156.6 |
| 3.4×30 | 32-65 | 3.47 | 2.5° | Y355M1-6 | 160 | ZSY400-35.5 | 166.0 |
| 3.6×32 | 35-70 | 4.95 | 3.5% | Y315M-4 | 185 | ZSY500-35.5 | 175.0 |
| 3.6×36 | 38-75 | 4.95 | 3.5% | Y355S2-4 | 200 | ZSY500-35.5 | 185.0 |
| 3.8×30 | 40-80 | 3.18 | 2.5° | Y355S2-4 | 200 | ZSY500-35.5 | 206.0 |
| 4.0×32 | 45-90 | 3.18 | 2.5° | Y355L-6 | 220 | ZSY500-31.5 | 215.0 |
| 4.0×34 | 50-100 | 3.0 | 2.5° | YJS355L-6 | 250 | ZSY500-35.5 | 230.0 |
Note: The feeding temperature is 65-85℃, and the discharging temperature is less than 45℃.
