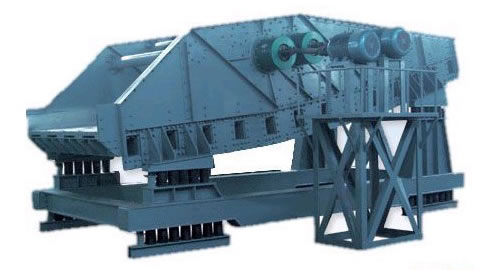

Fertilizer Vibrating Screen
Description of Fertilizer Vibrating Screen:
Our fertilizer vibrating screen is mainly used in screening and separating of semi-finished and finished compound fertilizer. And it is mainly comprised of vibrating motor, screen box, damping spring, supporting seat, etc. Its screen can be divided into single-deck screen and double-deck screen, and users can decide their screen type according to their technological requirements.
Technical Parameters of ZD Series Fertilizer Vibrating Screen:
| Model | Output (t/h) | Screen area | Slope of screen |
Working amplitude (mm) |
Vibrating motor | Weight (kg) | |
| Model | Power | ||||||
| ZD1025 | 4-6 | 2.5 | 20° | 2.8-3.4 | ZDS-2.5-6 | 2×0.75 | 1180 |
| ZD1025 | 4-8 | 3.0 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×0.75 | 1380 |
| ZD1030 | 5-10 | 3.6 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×0.75 | 1560 |
| ZD1230 | 6-12 | 4.2 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×1.1 | 1800 |
| ZD1340 | 8-16 | 5.0 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×1.5 | 2500 |
| ZD1435 | 10-20 | 5.2 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×2.2 | 3200 |
| ZD1440 | 10-25 | 6.0 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×2.2 | 3500 |
| ZD1554 | 15-25 | 6.8 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×3.0 | 3900 |
| ZD1550 | 15-30 | 7.2 | 20° | 3.7-4.7 | ZDS-2.5-6 | 2×3.0 | 4180 |
